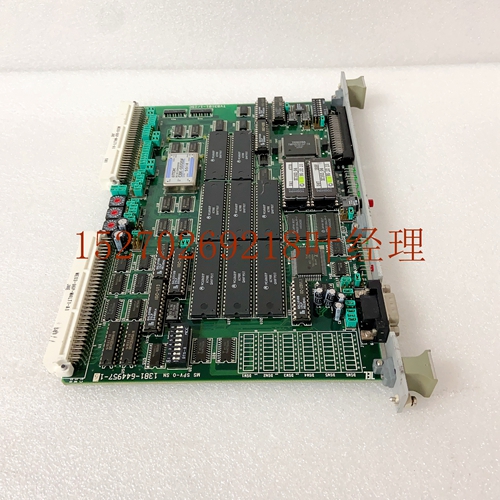

TVB3101-1ISC 1381-644957-16 1308-644957-12库存模块

产品详情资料

将夹子从机架导轨上拔下，然后用力拉动电路板，将其从背板连接器上拆下。沿卡导轨滑动电路板，然后将其从机架中取出。3总线接收器模块GFK-0162F总线扩展模块1997年8月90-70系列可编程控制器数据表手册GFK-0600F 64-3总线控制器，BEM731/734 a42786g IC66*I/O块编程总线（大7500英尺（2285米））P S I/O终端（后一个机架）从BTM到后一个BRM的所有互连电缆的总长度大50英尺（15米）。所有机架必须处于相同的接地电位（多8个机架）。注：图例CPU-所选CPU模块BRM-总线接收器型号，BEM711 BTM-总线发射器型号，BEM913 PCM-可编程协处理器模块，PCM711 PS-电源，PWR710/711/724/748并联或N B C N B C GBC/NBC-图2。典型PLC系统配置状态指示三个绿色LED提供状态信息，如图3所示。当通电、机架已配置、机架中没有致命故障、与CPU建立了通信以及机架中至少有一个其他模块时，顶部LED亮起。中间的LED指示端接插头的存在：ON表示存在插头。当CPU处于运行模式并且在近500毫秒内与该机架通信时，底部LED亮起，否则熄灭。
the clip from the rack rail and pull the board firmly to remove it from the backplane connector.  Slide the board along the card guide and remove it from the rack. 3 Bus Receiver Module GFK-0162F Bus Expansion Modules August 1997 Series 90-70 Programmable Controller Data Sheet Manual GFK-0600F 64-3 BUS CONTROLLER, BEM731/734 a42786g IC66* I/O BLOCK PROGRAMMER  BUS (7500 FEET (2285 METERS) MAXIMUM) P S I/O TERMINATOR (LAST RACK) TOTAL LENGTH OF ALL INTERCONNECTING CABLES FROM BTM TO LAST BRM IS 50 FEET (15 METERS) MAXIMUM. ALL RACKS MUST BE AT SAME GROUND POTENTIAL (8 RACKS MAXIMUM). NOTE LEGEND CPU - SELECTED CPU MODULE BRM - BUS RECEIVER MODEL, BEM711 BTM - BUS TRANSMITTER MODEL, BEM713 PCM - PROGRAMMABLE COPROCESSOR MODULE, PCM711 PS - POWER SUPPLY, PWR710/711/724/748 PARALLEL or or N B C N B C GBC/NBC - Figure 2. Typical PLC System Configuration Status Indications The three green LEDs provide status information as shown in figure 3. The top LED is ON when power is applied, the rack is configured, there are no fatal faults present in the rack and communications are established with the CPU, and there is at least one other module in the rack. The middle LED indicates the presence of the terminator plug: ON is plug present. The bottom LED is on when the CPU is in run mode and has communicated with this rack within the last 500 milliseconds, otherwise it is off.

发货期：1-3个工作日，具体可联系客服
质保：质保期一年！

主营产品简介
专注于DCS、PLC、机器人控制系统、大型伺服四大系统领域。

主营产品各种模块/卡件，控制器，触摸屏，伺服驱动器。

优势：供应进口原装正品，专业停产配件，

发货快，货期精准，

主营品牌包括 ABB贝利、GE/FUANC、FOXBORO、英维思TRICONEX 、本特利BENTLY、A-B罗克韦尔、艾默生EMERSON 、OVATION、MOTOROLA、XYVOM、霍尼韦尔HONEYWELL 、力士乐REXROTH、KUKA、NI、DEIF、横河、伍德沃德WOODWARD、瑞恩、施耐德SCHNEIDER 、安川、 穆格MOOG、PROSOFT等品牌。

只卖库存产品;出完需订货!价格以客服说明为准!!订货货期以客服说明为准，有任何疑问请联繁客服! Limited stock, Contact US!
